उत्पाद विवरण:
|
| नमूना: | यूवीसीटीपी | अधिकतम उत्पादन आकार: | 1130*890मिमी |
|---|---|---|---|
| उत्पादन की गति: | 29 पीसी | लेजर मॉडल: | V6 |
| काम के सिद्धांत: | साधारण प्रकाश इमेजिंग | संचालन आवश्यकताओं: | इनडोर 16-24 डिग्री सेल्सियस |
| प्रमुखता देना: | CTCP Printing Machine,50HZ CTCP Printing Machine,60HZ UV CTP Machine |
||
| Technical Parameters | ||||||||||
| Model | Thermal | UV | ||||||||
| T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
| NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
| Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||

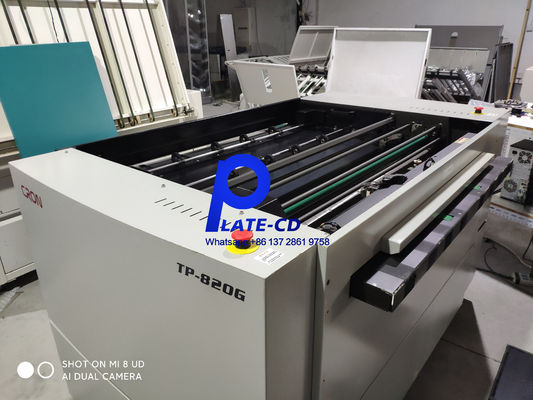

Model: CTCP machine (UVCTP machine)
Maximum size: 1130*880mm
At the maximum production size, 29 plates can be produced per hour.
The room needs to be kept at a constant temperature, at 16-24 degrees Celsius, during the operation of the machine, do not open the machine casing, and do not touch it with your hands, to avoid serious accidents caused by laser burns on your arms.
Do a good job of indoor waterproofing, dry.
