उत्पाद विवरण:
|
| प्लेट की मोटाई: | 0.15-0.28 मिमी | प्लेट प्रकार: | यूवी प्लेट/CTCP प्लेट |
|---|---|---|---|
| आउटपुट संकल्प: | 2400डीपीआई | आवेदन: | प्लेट बनाना |
| स्थिति: | नया या इस्तेमाल किया | वोल्टेज: | 220V |
| प्रमुखता देना: | UVCTP plate printing machine,CTCP plate computer making machine,CTCP printing machine with warranty |
||

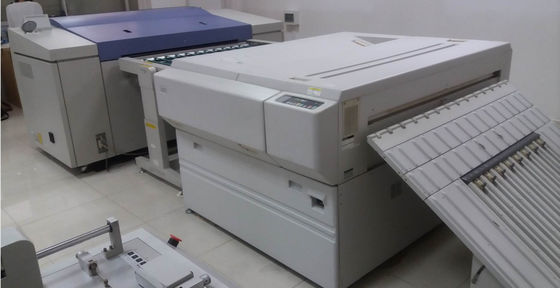

CTCP printing machine ,UVCTP machine ,UVCTCP plate machine ,CTCP plate computer making machine
product description

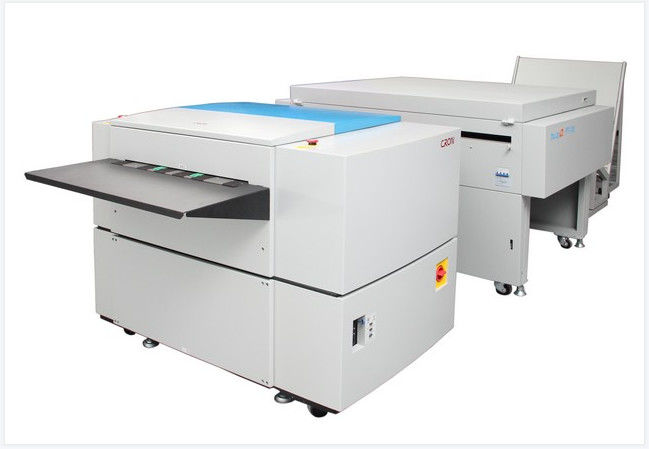

Using computer to plate CTP CTCP plate making machine
Chuangda (Shenzhen) Printing Equipment Co., Ltd., new computer board making machine and second-hand computer board making machine
Our state-of-the-art technology CTP equipment, coupled with customer-focused service and support that is second to none, enables printers to increase the quality and efficiency of output while reducing viable press runs, turnaround times and costs.
UV-CTP
Our UV CTP products are designed to provide flexibility and quality for all offset printing applications. its easy to repair
Platform and cost-effective design, combined with comprehensive automation options, provide fast and efficient UV plate production
Covers a variety of formats from A3 to VLF.
| Technical Parameters | ||||||||||
| Model | Thermal | UV | ||||||||
| T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
| NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
| Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||
PLATE-CD www.cd-printing.com
